1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender
Model:LNK-B-DVI-1DA1GO
Overview
The LNK-B-DVI-1DA1GO Fiber optic extender provides extension of DVI signals long distances over one
fiber optic cable, it supports high resolution up to 1080P, RS232, GPIO signal and external audio transmission
function. The extender can use for a wide range of applications requiring long distance transmission of high
resolution with high quality by its good stability and powerful security.
Features
► Transmits Bi-directional DVI video signals up to 20km over one fiber optic cable;
► Support video resolution up to 1920*1200P@60Hz;
► Support external stereo audio bi-directional transmission;
► Support RS232 signal bi-directional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play
Technical Indexes
| Parameter | Description |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 2.97Gbps |
| Resolution | 1920*1200@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
| Connector | DVI-D |
| Impedance | 100Ω |
| Audio | Interface | 3.5mm earphone seat |
| Signal type | Stereo |
| GPIO | Interface | Industrial terminal |
| RS232 | Interface | Industrial terminal |
| Signal direction | Bi-directional |
| Baud rate | Self-adaptive, Max:115200bps |
| Data bits | 8 |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber |
| Wavelength | Single-mode 1310nm |
| Interface bandwidth | 3Gbps |
| Transmission distance | standard 10km |
| Other | Power supply | The power adapter: DC 12V/1A |
| Power dissipation | MAX 6W |
| Temperature | Operating: -5℃ ~ +70℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension (LxWxH) | 148*115*28mm |
| The warranty | 1-year warranty |

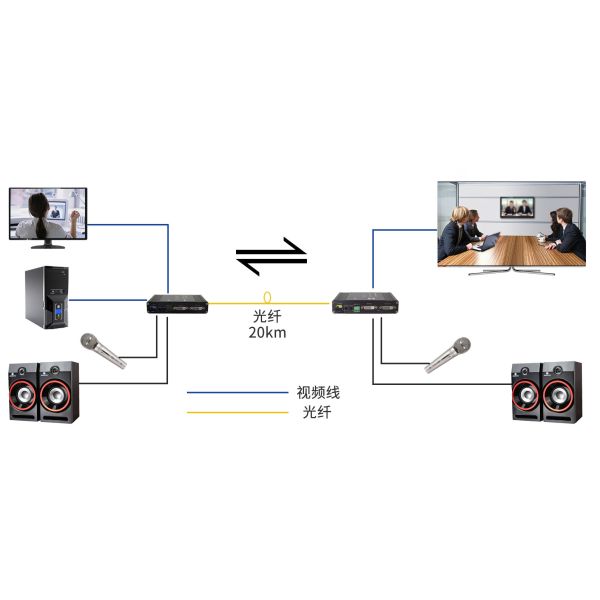

Application
Ordering Information
| Model | Description |
| LNK-B-DVI-1D1A1GO | 1CH 1080P two-way DVI video + 1CH two-way RS232 data + 1CH two-way stereo audio + 1CH GPIO, LC, single-mode, 20KM |
